Wide Brush Sanding Machine Model: MSG1300-P2A2C3-7S

  • By:KaiYuan
  • Date:2021/09/25

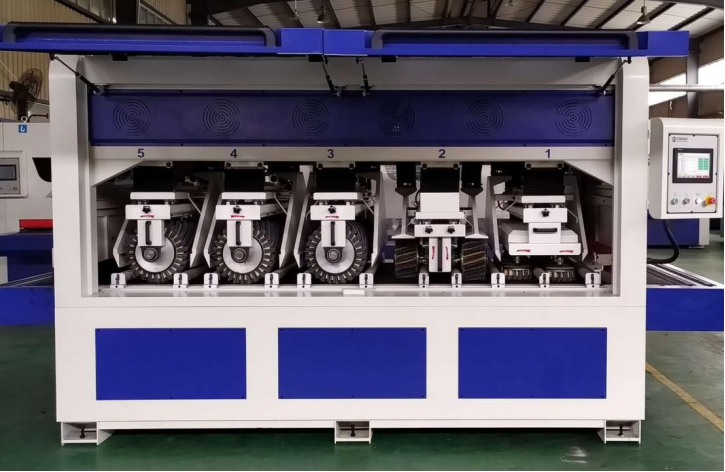

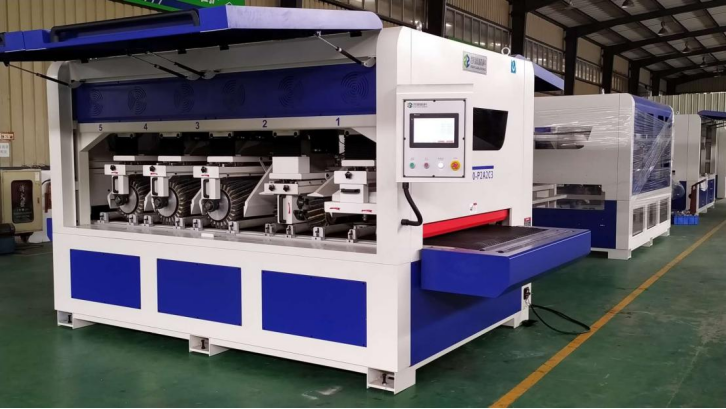

1、Product Snapshot



(Machine images)

2、Product Introduction

1) This wide brush sanding machine has automatic feeding system, PLC program memory one key control system and multi-unit sanding head flexibility. Combination, good processing softness, high automaticity, can be linked with automatic pipeline, high production efficiency.



2) Wide range of processing, suitable for all kinds of primer, special-shaped surface, curved surface and other board white body, paint can be sand. Light polishing, such as wooden doors, cabinets, wardrobes, dining tables and chairs, children's beds, floors, bathrooms, etc.



3) MSG is a heavy automatic adjustment function, 1300 mm processing width, A is horizontal sanding, P It is a disc sanding, C is a big sanding roller.

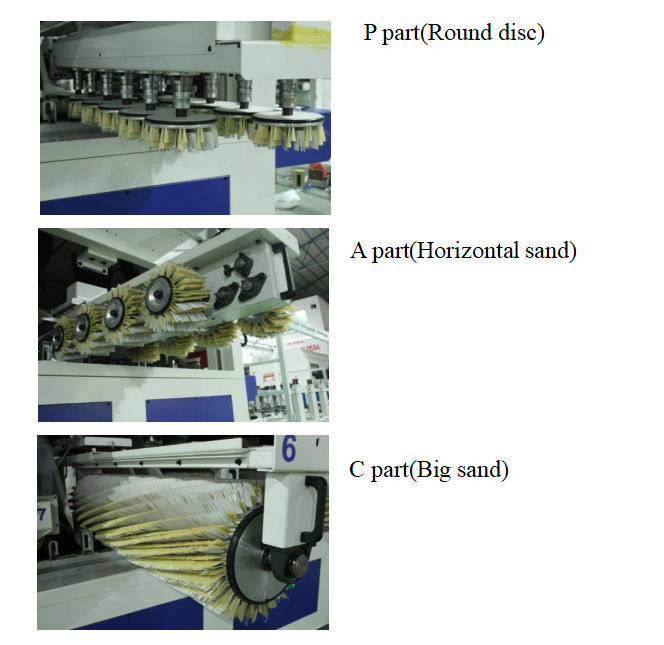

3、Introduction To Configuration

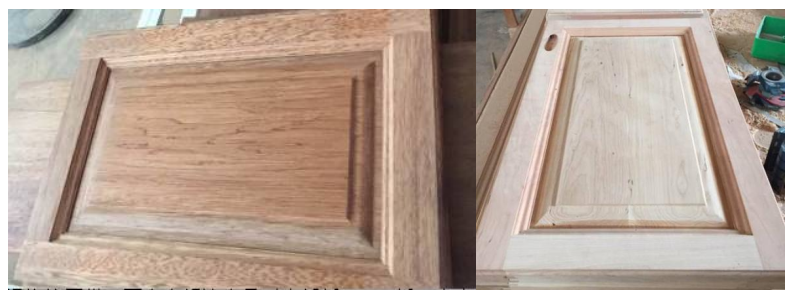

4、Processing Template

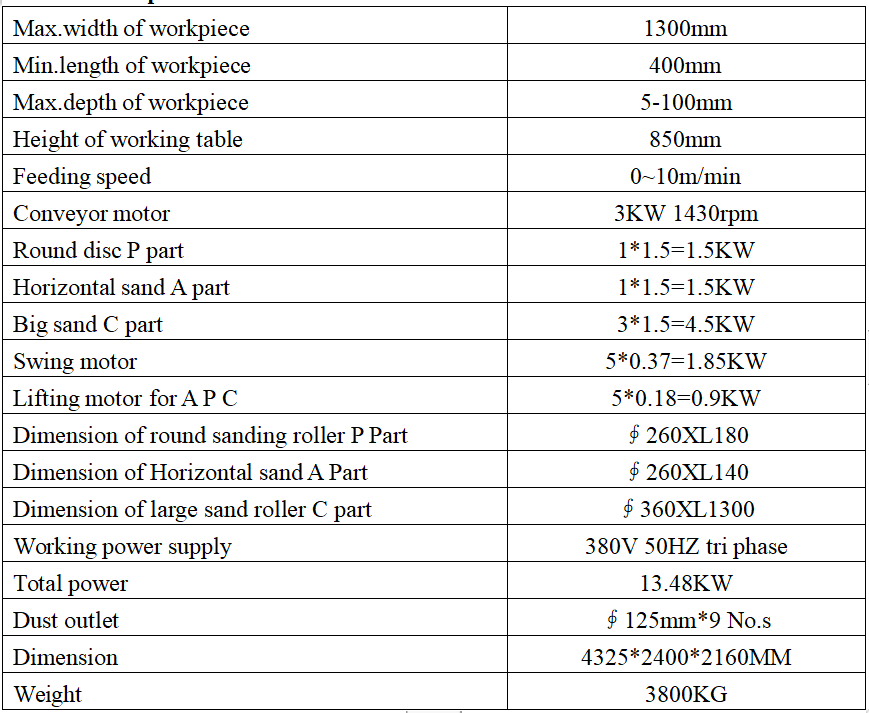

5、Technical Parameter
