Detailed Information of Wide Brush Sander Model: MSG1300-P2A2C4

  • By:Kaiyuan
  • Date:2022/01/19

Wide brush sanding machine appearance reference diagram

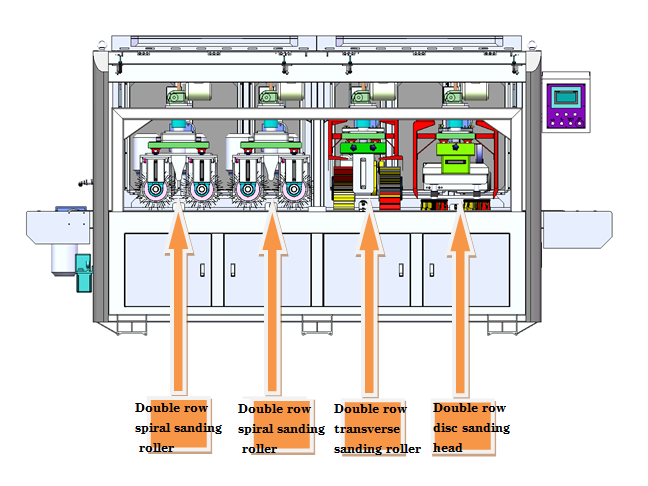

② Brush sanding machine structure diagram

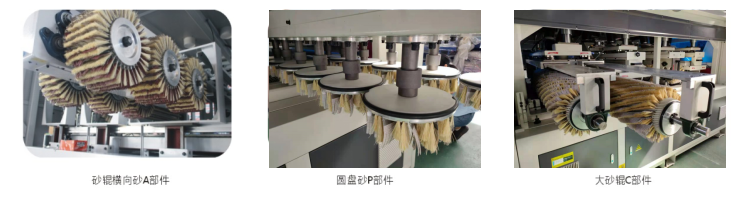

③ The components of Special-shaped sanding machine are shown in the figure

Remarks: the quick abrasive replacement structure is adopted to replace the abrasive more quickly. Each time the abrasive is replaced, only the abrasive cloth needs to be replaced. The disc abrasive can be replaced by the quick pulling and inserting type and quick chuck, which can save a lot of labor.

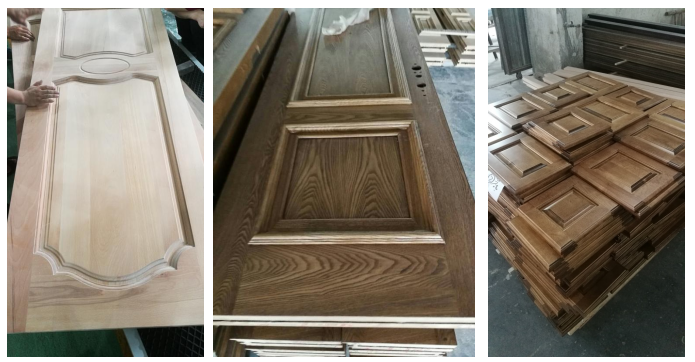

④ Workpiece sample from Wood door sanding machine





⑤ Wood cabinet sanding machine function introduction:

1. With abrasives of different numbers and specifications, it can completely solve the grinding process of furniture (MDF board, MDF board, solid wood, etc.) blank and paint (PU bottom, UV bottom, PE bottom and water-based paint, etc.), and meet the sanding process needs of customers.

2. The working principle of the wide brush sanding machine simulates manual grinding, and uses the functions of various components of reciprocating machinery to specifically sanding various special-shaped parts. The sanding effect can not completely replace manual grinding, but can reduce the amount of labor to a certain extent, solve 70% - 90% of the grinding amount, reduce the amount of labor and improve efficiency.

3. Each sanding unit can realize independent control switch, variable frequency speed regulation and independent automatic lifting function. The whole machine adopts computer PLC control program to realize program memory setting function and one key start function, so as to simplify the operation process.



⑥ Requirements for technical parameters of Wide brush sander



Max.width of workpiece

1300 mm

Min.length of workpiece

280 mm

Max.depth of workpiece

120 mm

Height of working table

850 mm

Feeding speed

0~10m

Conveyor motor

2.2 KW

Round disc motor

6*1.5=9 KW

Swing motor

4*0.37=1.48 KW

Lifting motor

5*0.18=0.9 KW

Dimension of sanding roller

∮280XL160

Dimension of large sanding roller

∮280XL1300

Working power supply

380V 50HZ

Total power

13.58 KW

Vacuuming mouth

∮125mm

Dimension

4200X2100X2200mm

Weight

3200 KG



⑦ Description of Brush sanding machine motor and electrical appliance:

1. Motor brand: Dunglee, TAIWAN

2. Inverter brand: Simphoenix

3. PLC: Simphoenix

4. Brand of low voltage electrical appliances such as contactors: CHINT electric

5. Conveyor belt brand: joint venture

6. Pneumatic components: EASUN, ZHEJIANG, CHINA

7. Drive bearing: SKF (Sweden)
